Function as follows:

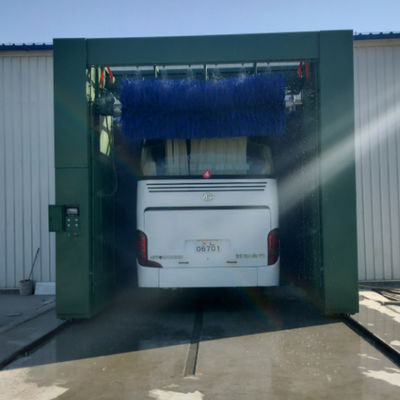

This is designed for washing bus, trucks, engineer vehicles etc. One piece of horizontal brush is used to wash the vehicle top. Big side brushes are used to wash sides of vehicle. Water or detergent are optional for cleaning. Other brushes are to work according to the shapes of vehicles. All procedures are automatic. It can save labor cost, water and electricity.
Model: 3-Brushes DXC(C)-300
| Max Vehicle size(W×H) | 2600×4200mm |
| Machine size(L×W×H) | 2150×5750×5355mm |
| Rail Length | 18000mm |
| Total power | 13KW |
| Voltage | 380V/50HZ,3 phase 4 line |
6,Brush quantity:one big horizontal brush, two big side brushes,
7,Average water consumption:150-180L/vehicle
8,Cleaning time needed:3-5min/vehicle
9,Air pressure:0.8Mpa
10,Control System:Programmable Controller
11,Washing speed:15-20vehicles/hour
12,Washing way:water+brush
13,Operation way:automatic
14,Body material:steel structure,hot-dipped galvanized & powderpainting.
